GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.
Technical Parameters:
Machine model | G1WY-100 | G1WY-300 | G1WY-500 | G1WY-1000 | G1WY-3000 | G1WY-5000 |
Filling speed | 5-20b/min(take water for example) | |||||
Filling range | 10-100ml | 30-300ml | 50-500ml | 100-1000ml | 1000-3000ml | 1000-5000ml |
Air pressure | 0.4~0.6mpa | |||||
Filling error | ≤±1% | |||||
Machine size | 806(L) × 180(W) ×690(H)mm | 880(L) ×230(W) ×665(H)mm | 880(L) × 230(W) ×665(H)mm | 1065 (L) ×230(W) ×665(H)mm | 1250(L) ×400(W) ×300(H)mm | 1390(L) ×420(W) ×380(H)6mm |
Machine weight | 30 Kg | 35Kg | 40Kg | 45Kg | 60 Kg | 80 Kg |
Machine can be customized according to customer,s requirement

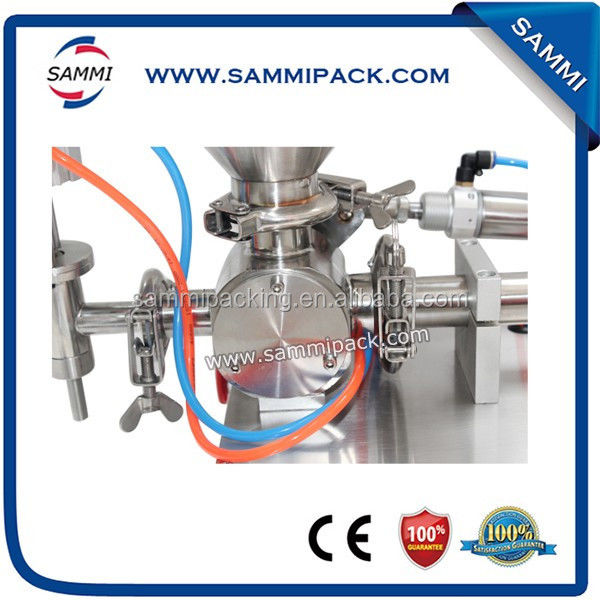

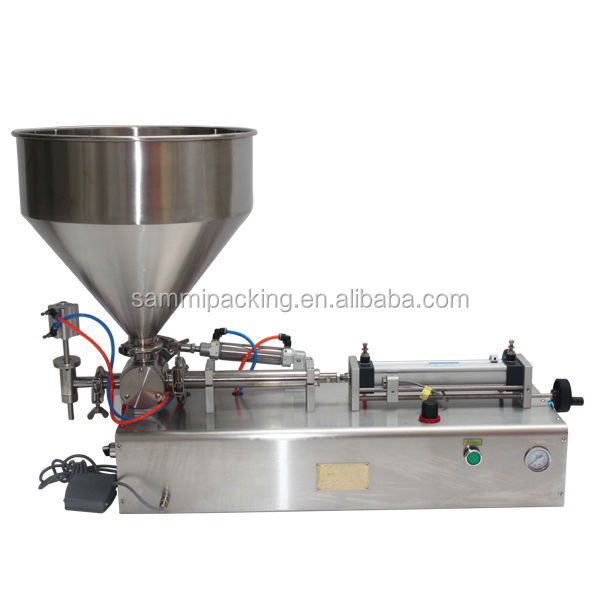

Pictures of cream filling machine
Filling material sample
| Payment Term: | T/T, L/C, Western Union, PayPal, Credit card, trade assurance |
| Package: | export standard wooden case & cartons, honeycomb paperboard case |
| Delivery Time: | 1-3 days after payment |
| transportation: | by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc) |
Shipping Time: | A, by express:about 5 days to arrive shipping destination,door to door service |
| B, by air: about 7 days to destination airport | |
C, by sea:15-30 days to destination port |
1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: We supply spare parts with competitive price after warranty time.
