High Speed L type sealing cuting machine& Heat Shrink machine
Widely used in batch production and packaging. It has high efficiency, automatic film feeding and punching device, manual adjusting conductive film system and manual adjusting feeding and conveying platform. Suitable for products of different widths and heights.
Automatic Side Sealer is specially designed for packaging long products such as profiles, rails, bars, etc., and at random lengths as well.It,s comfortable and efficient to handle by its open and accessible design. High operating efficiency ensures Fully Automatic L-sealer a first-class packaging quality.
Electronic temperature control system, when the temperature of the shrinking furnace reaches the set temperature, the machine automatically stops heating, so that the shrinking furnace can save electricity, Adopt brand speed control circuit board, the shrinking transmission is more stable and better shrink effect.
Main feature:
Packing product without length limitation
Excellent perforation system allows the pin easily to change and adjust
The sealing system capable of produce smooth and firm sealing line
With safety protection
Easy maintenance and operation
Shrink Tunnel
|
Shrink Tunnel Size |
L1200 x W450 x H200 MM |
|
Package Size |
Max. W350 x H150 MM |
|
Temperature |
Max. 200 oC adjustable |
|
Conveyor Speed |
0-10 M/MIN |
|
Conveyor Load |
Max. 10 KGS |
|
Package material |
PVC POF PP PE |
|
Power Supply |
220 V/50 HZ/60HZ |
|
Power Consumption |
12KW |
|
Net Weight |
160KGS |
|
Overall Size |
L1600 x W719 x H1444MM |
L Type Sealing Machine
|
Sealing Size |
Max. L560 x W440 MM adjustable |
|
Max package size |
(W+H)< 450mm, (L+H)< 550mm; (H)≤140mm |
|
Cycle Time |
15-30PCS/ MIN |
|
Sealing time |
0.2s-1s |
|
Film thickness |
0.012-0.06mm |
|
Power Supply |
220 V, 50 HZ |
|
Air pressure |
0.5mpa |
|
Power Consumption |
1.35KW |
|
Heating power |
800W |
|
Package material |
POF |
|
Overall Size |
L1760 x W940 x H1580 MM |
|
Net Weight |
300 KGS |

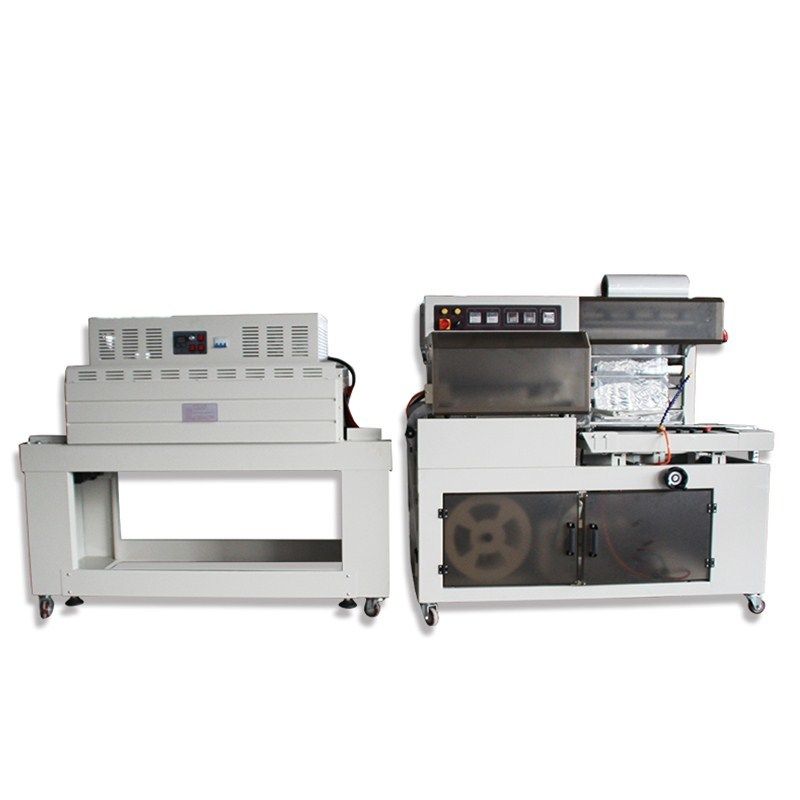

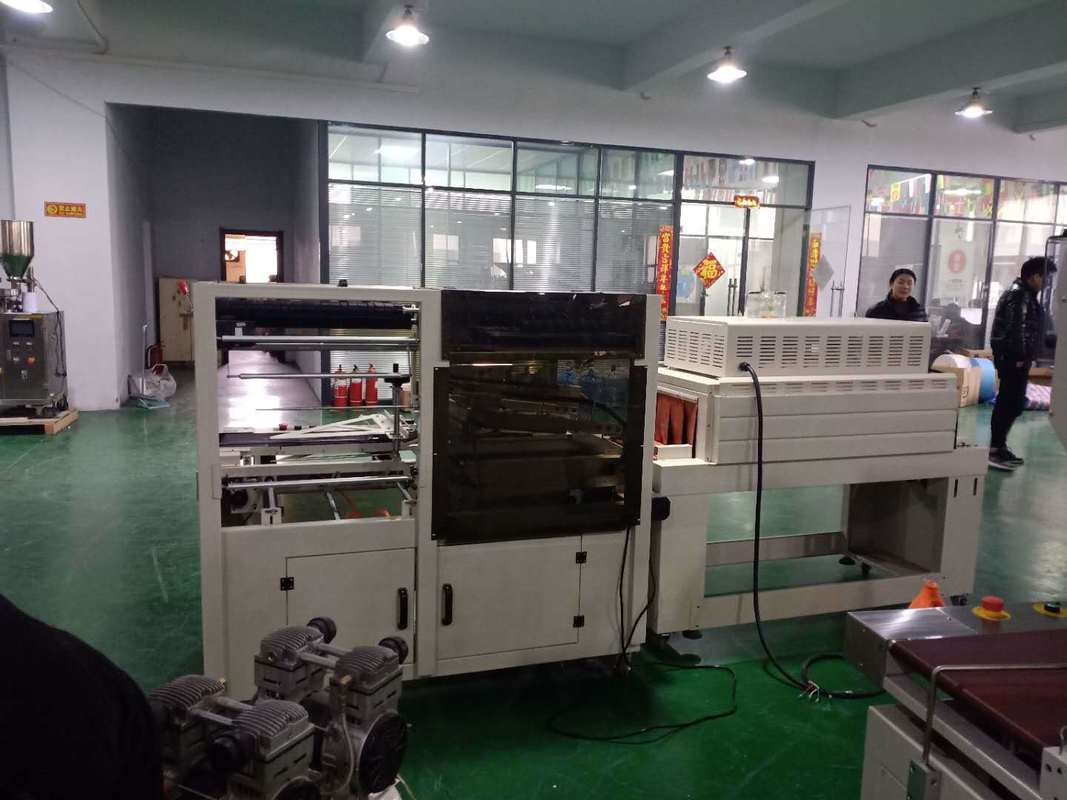

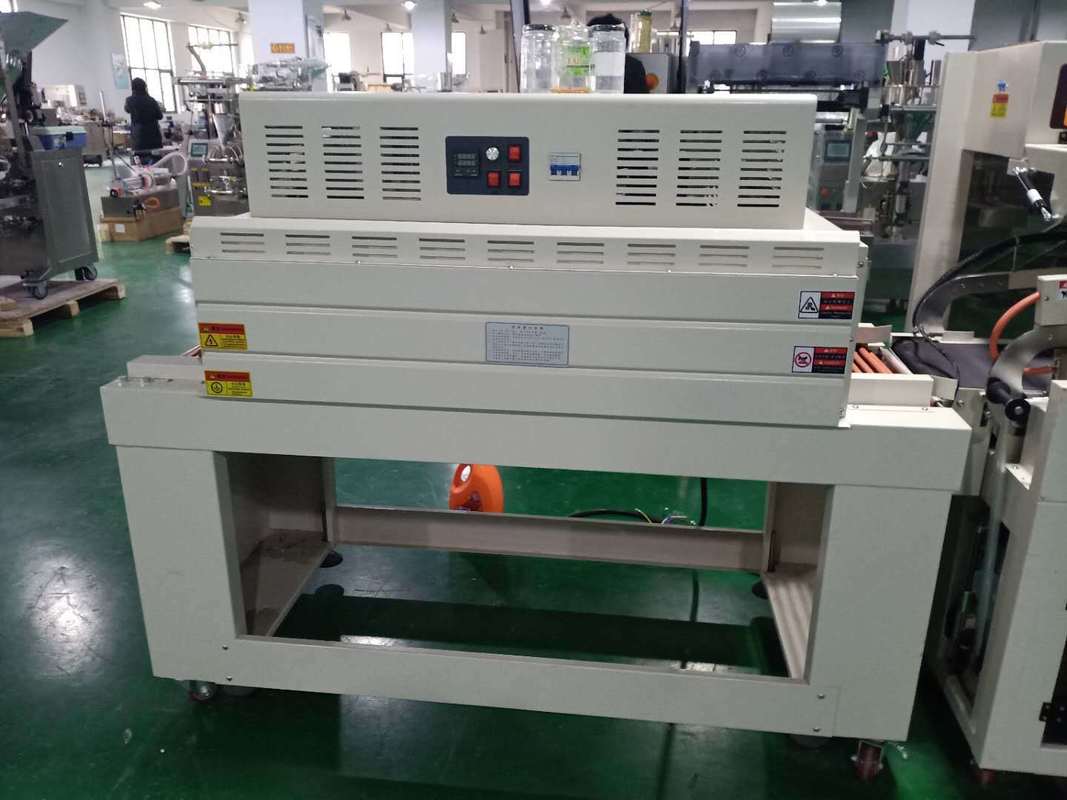

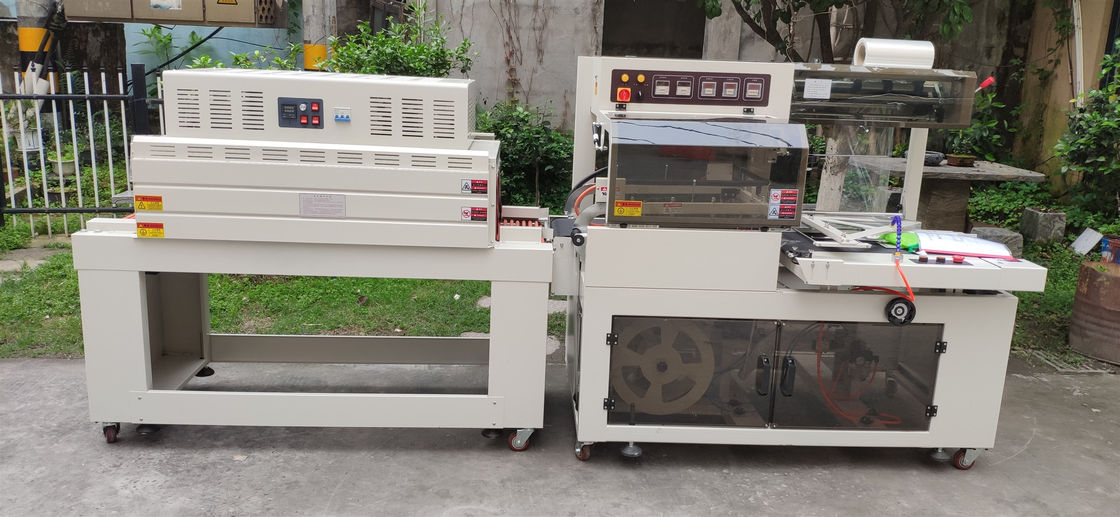

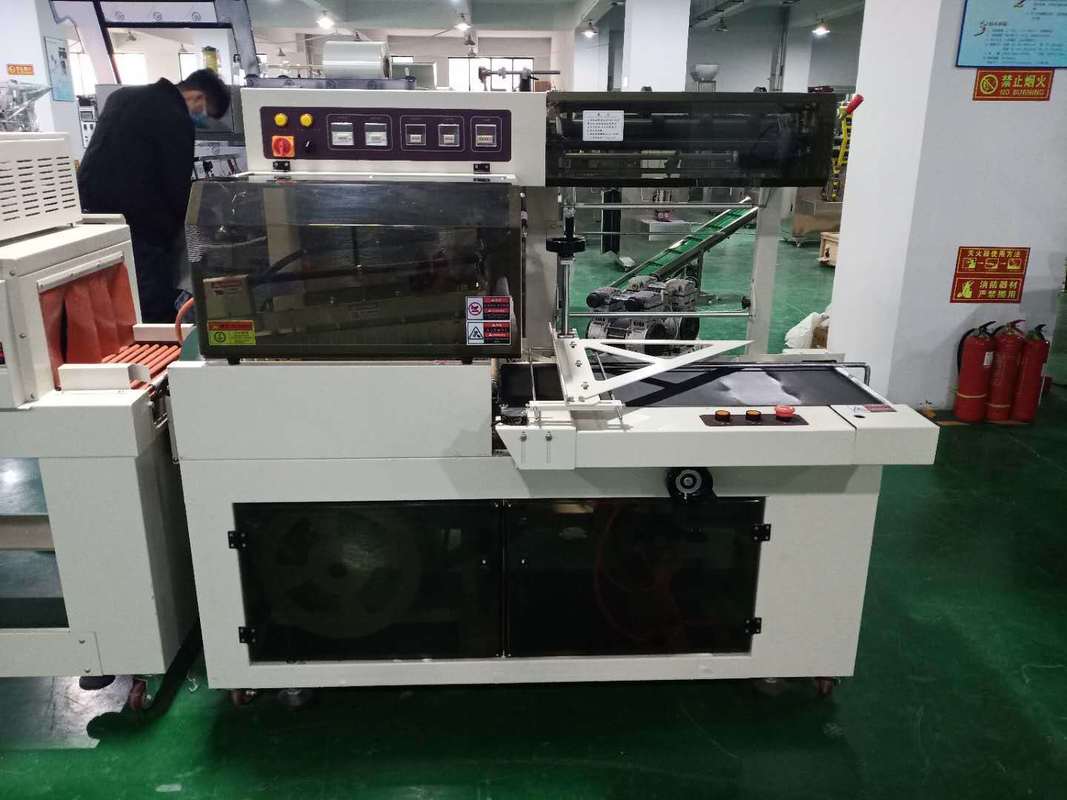

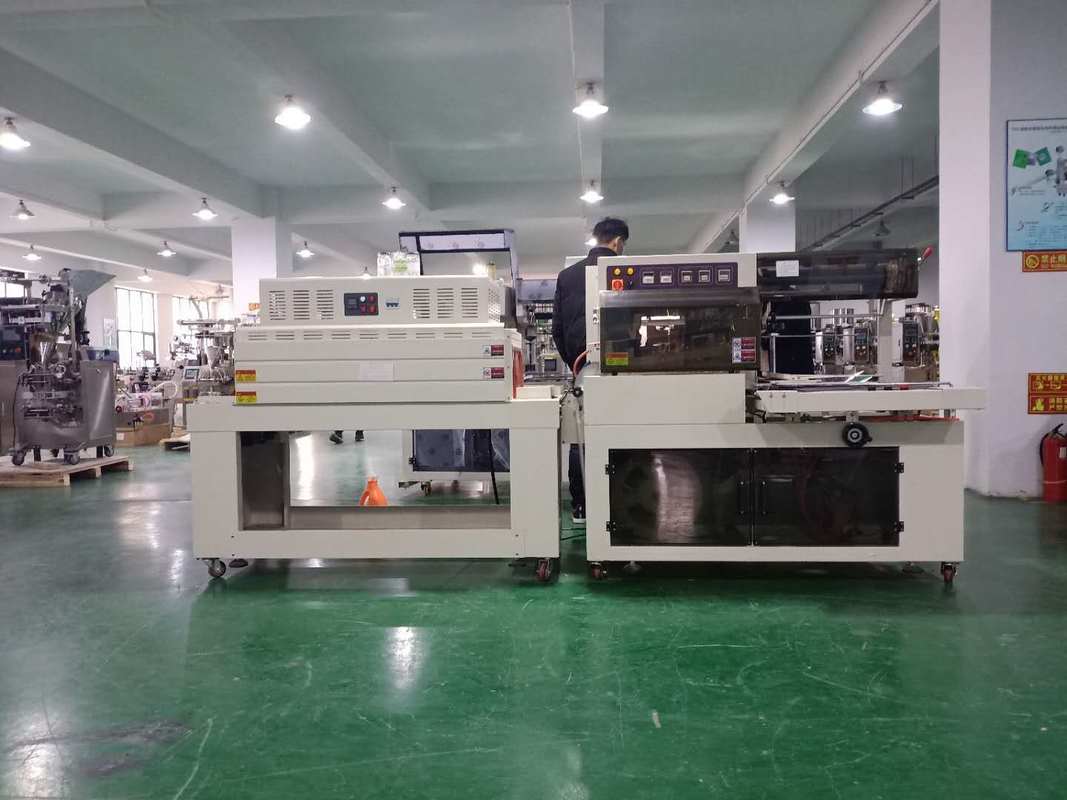

Machine pictures:
