Product description:
This machine adopts food grade 304 stainless steel, which has reached the food grade and no contamination of the filling food. The use of the food-grade self-priming pump and Chinese control buttons, screen, a key quantitative, automatic filling, automatic counting and other functions, filling convenient and quick.
Suitable for stand-up pouches of any size, for any quantitative fill above 5g. The weight of the filling can be arbitrarily adjusted. Suitable for the filling of non-grain, low-viscosity liquids such as soymilk, milk, beverages, and laundry detergents.
Application:
liquid soybean milk, milk, yoghurt, juice, sour plum soup, beverage, traditional Chinese medicine, soup juice, sheep milk, mineral water, soybean milk, milk tea and so on. Soybean milk, juice, soup, traditional Chinese medicine and other liquids with particles must be filtered clean and refilled, this machine has a filter screen, with filtration function. Not suitable for filling very thick freshly ground soy milk, yoghurt etc. If need to fill yoghurt, thick soybean milk, please contact customer service!
Technical parameters:
| Voltage: | 220v/110v |
| Power: | 95W |
| Filling speed: | 3.5L/min |
| Liquid temperature: | normal temperature suitable for high temperature should not exceed 80 °C |
| Suitable materials: | pure liquid, such as alcohol, water, non-granule juice, etc. |
| Ambient temperature: | 15-50 degrees |
| Suitable height: | 50mm-400mm |
| Dimensions: | 350*355*420(L*W*H)MM |
| Weight: | 9kg |
Machine features:
1.Simple structure in linear type, easy in installation and maintenance.
2. Adopting advanced world famous brand components in pneumatic parts, electric parts, and operation parts.
3.High-pressure double crank to control the die opening and closing.
4. Running in a high automatization and intellectualization, no pollution
5. Apply a linker to connect with the air conveyor, which can directly in line with filling machine.
6.Filling valve controlled by a solenoid valve, high filling accuracy.
7.Using a special three-way valve system that allows higher filling accuracy.
8. Pneumatic machines can be customized without power explosion-proof.
9.Magnetically driven gear pump head and motor without the shaft, do not worry about leaks or seal damage, pump load is too high and burn out the motor.

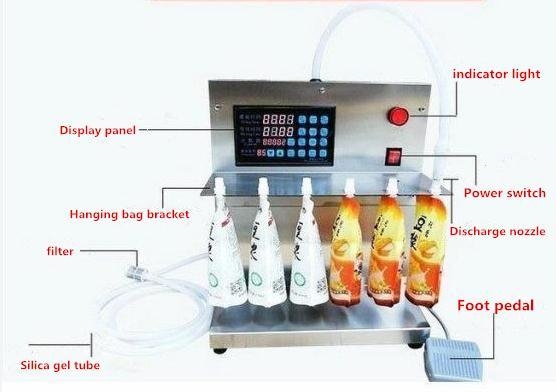

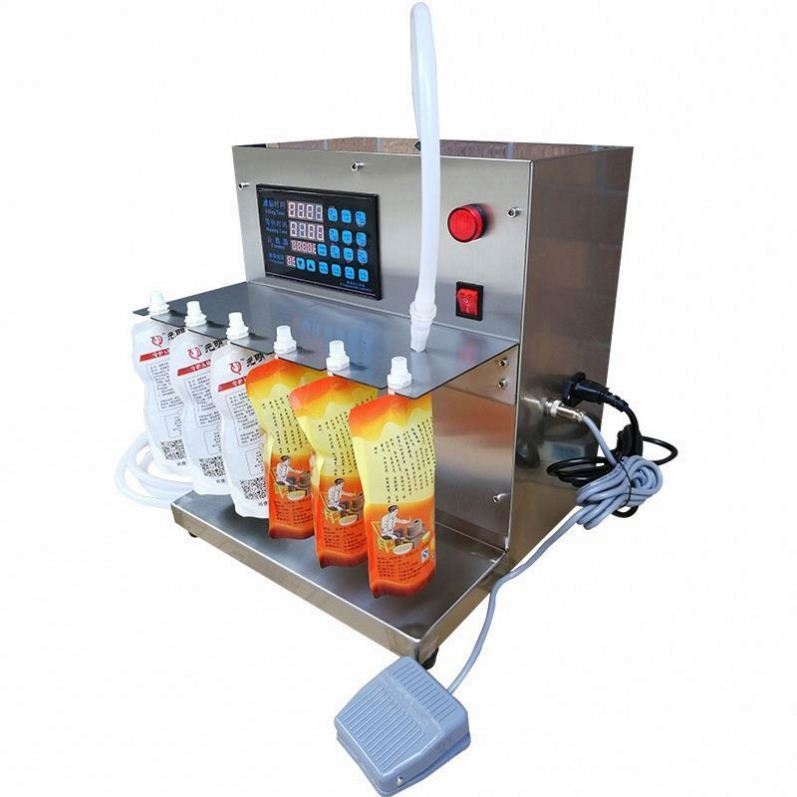

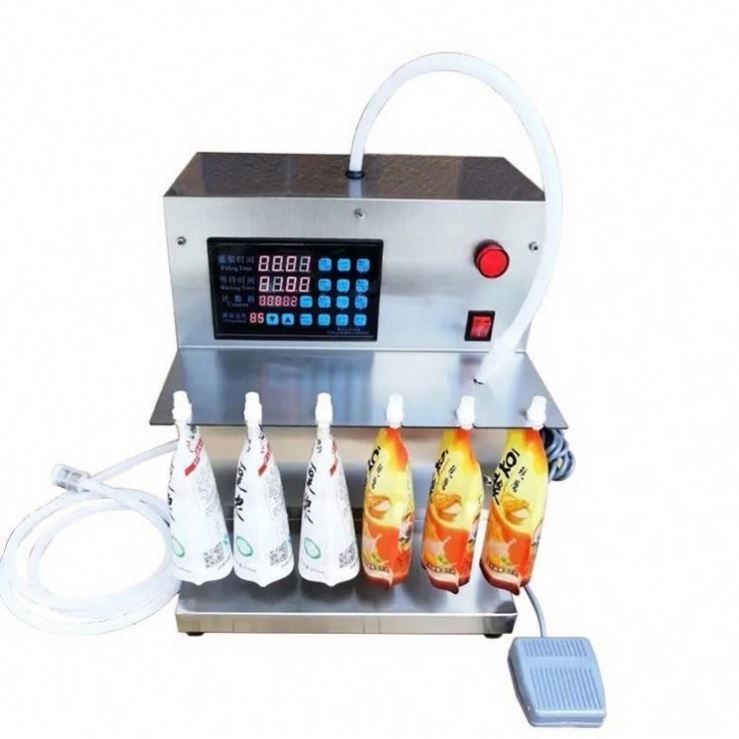

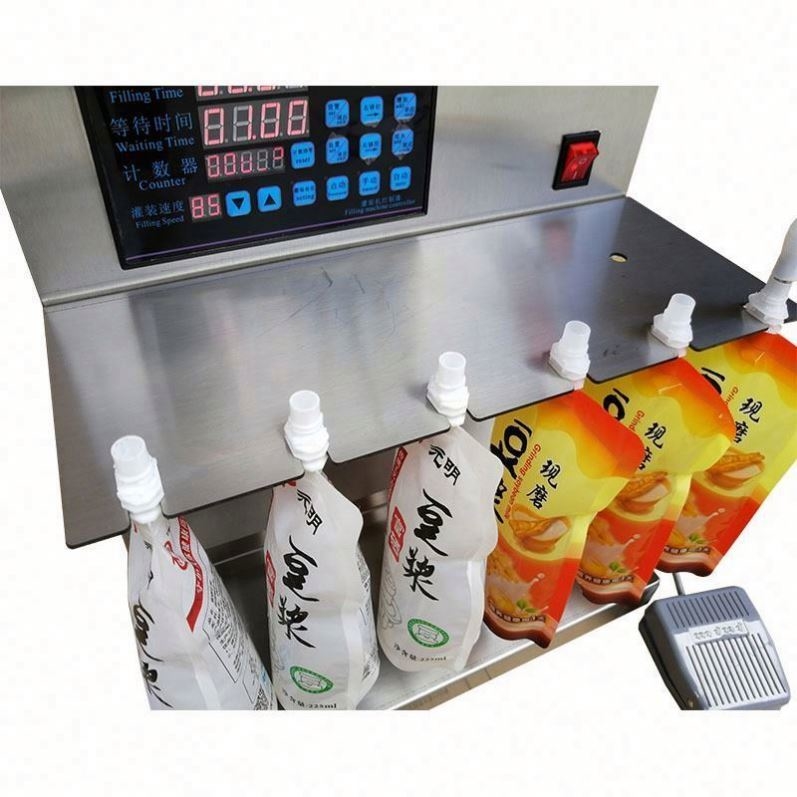

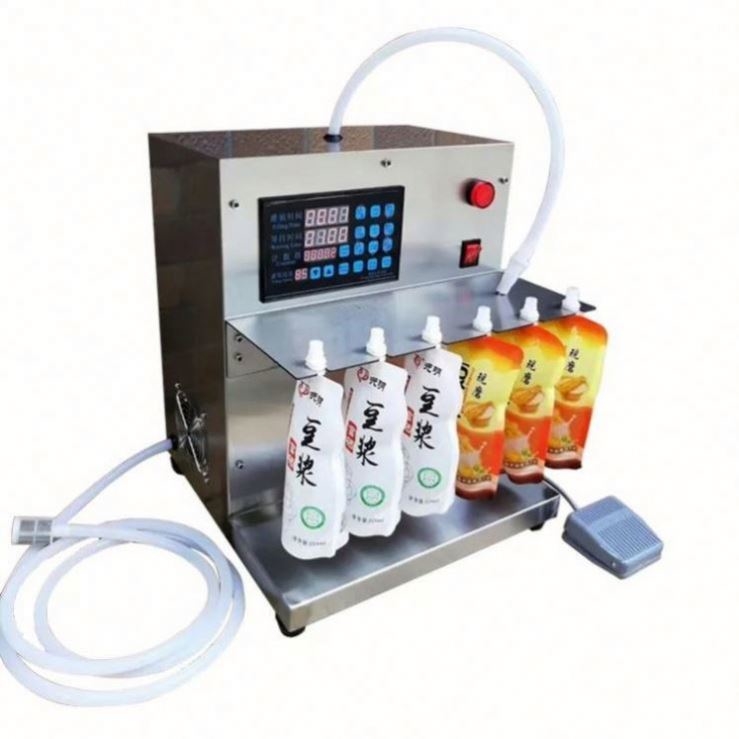

Machine pictures:
